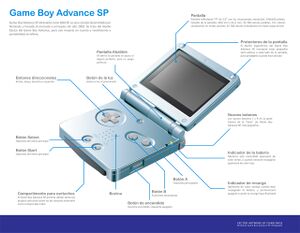

Gameboy Advance - GPSPy


Introducció

Instal.lació

GpSP - Nintendo Gameboy Advance

GpSP - A ‘Beginners Guide’ to Compiling and Using:

DPR has ported Notaz's GpSP (Original Source Code by Exophase). All criteria considered it is currently the best emulator for the system on the Raspberry Pi.

Download Link - https://www.dropbox.com/s/2x9tz60v06h15u9/gpsp.tar.gz

wget https://dl.dropbox.com/u/24838026/gpsp-ffa573f.tar.gz
$ cd gpsp-ffa573f/
rm gui.c
wget https://dl.dropbox.com/u/24838026/gui.c
    cd raspberrypi
    make -i

...
/opt/vc/include/interface/vmcs_host/vcgencmd.h:33:27: fatal error: vchost_config.h: No such file or directory

sudo joe /opt/vc/include/interface/vmcs_host/vcgencmd.h
#include "interface/vmcs_host/linux/vchost_config.h"

Ara ja podem compilar, però trigarà bastanta estona. It will take approximately 45 minutes to compile the Source Code (depending on your 'Overclock' setting).

Les instruccions que s'executen en la compilació són: (això és important per si vull recompilar una part del codi)

gcc -DARM_ARCH -DRPI_BUILD -Wall -Ofast -mfpu=vfp -mfloat-abi=hard -march=armv6j -fgnu89-inline -I/opt/vc/include -I/opt/vc/include/interface/vcos/pthreads -I/opt/vc/include/interface/vmcs_host/linux -I/usr/include/SDL -D_GNU_SOURCE=1 -D_REENTRANT   -c -o rpi.o rpi.c
gcc -DARM_ARCH -DRPI_BUILD -Wall -Ofast -mfpu=vfp -mfloat-abi=hard -march=armv6j -fgnu89-inline -I/opt/vc/include -I/opt/vc/include/interface/vcos/pthreads -I/opt/vc/include/interface/vmcs_host/linux -I/usr/include/SDL -D_GNU_SOURCE=1 -D_REENTRANT   -c -o main.o ../main.c
gcc -DARM_ARCH -DRPI_BUILD -Wall -Ofast -mfpu=vfp -mfloat-abi=hard -march=armv6j -fgnu89-inline -I/opt/vc/include -I/opt/vc/include/interface/vcos/pthreads -I/opt/vc/include/interface/vmcs_host/linux -I/usr/include/SDL -D_GNU_SOURCE=1 -D_REENTRANT -Wno-unused-variable -Wno-unused-label   -c -o cpu.o ../cpu.c
gcc -DARM_ARCH -DRPI_BUILD -Wall -Ofast -mfpu=vfp -mfloat-abi=hard -march=armv6j -fgnu89-inline -I/opt/vc/include -I/opt/vc/include/interface/vcos/pthreads -I/opt/vc/include/interface/vmcs_host/linux -I/usr/include/SDL -D_GNU_SOURCE=1 -D_REENTRANT   -c -o memory.o ../memory.c
gcc -DARM_ARCH -DRPI_BUILD -Wall -Ofast -mfpu=vfp -mfloat-abi=hard -march=armv6j -fgnu89-inline -I/opt/vc/include -I/opt/vc/include/interface/vcos/pthreads -I/opt/vc/include/interface/vmcs_host/linux -I/usr/include/SDL -D_GNU_SOURCE=1 -D_REENTRANT   -c -o video.o ../video.c
gcc -DARM_ARCH -DRPI_BUILD -Wall -Ofast -mfpu=vfp -mfloat-abi=hard -march=armv6j -fgnu89-inline -I/opt/vc/include -I/opt/vc/include/interface/vcos/pthreads -I/opt/vc/include/interface/vmcs_host/linux -I/usr/include/SDL -D_GNU_SOURCE=1 -D_REENTRANT   -c -o input.o ../input.c
gcc -DARM_ARCH -DRPI_BUILD -Wall -Ofast -mfpu=vfp -mfloat-abi=hard -march=armv6j -fgnu89-inline -I/opt/vc/include -I/opt/vc/include/interface/vcos/pthreads -I/opt/vc/include/interface/vmcs_host/linux -I/usr/include/SDL -D_GNU_SOURCE=1 -D_REENTRANT   -c -o sound.o ../sound.c
gcc -DARM_ARCH -DRPI_BUILD -Wall -Ofast -mfpu=vfp -mfloat-abi=hard -march=armv6j -fgnu89-inline -I/opt/vc/include -I/opt/vc/include/interface/vcos/pthreads -I/opt/vc/include/interface/vmcs_host/linux -I/usr/include/SDL -D_GNU_SOURCE=1 -D_REENTRANT   -c -o gui.o ../gui.c
gcc -DARM_ARCH -DRPI_BUILD -Wall -Ofast -mfpu=vfp -mfloat-abi=hard -march=armv6j -fgnu89-inline -I/opt/vc/include -I/opt/vc/include/interface/vcos/pthreads -I/opt/vc/include/interface/vmcs_host/linux -I/usr/include/SDL -D_GNU_SOURCE=1 -D_REENTRANT   -c -o cheats.o ../cheats.c
gcc -DARM_ARCH -DRPI_BUILD -Wall -Ofast -mfpu=vfp -mfloat-abi=hard -march=armv6j -fgnu89-inline -I/opt/vc/include -I/opt/vc/include/interface/vcos/pthreads -I/opt/vc/include/interface/vmcs_host/linux -I/usr/include/SDL -D_GNU_SOURCE=1 -D_REENTRANT   -c -o zip.o ../zip.c
gcc -DARM_ARCH -DRPI_BUILD -Wall -Ofast -mfpu=vfp -mfloat-abi=hard -march=armv6j -fgnu89-inline -I/opt/vc/include -I/opt/vc/include/interface/vcos/pthreads -I/opt/vc/include/interface/vmcs_host/linux -I/usr/include/SDL -D_GNU_SOURCE=1 -D_REENTRANT -c -o arm_stub.o ../arm/arm_stub.S
gcc -DARM_ARCH -DRPI_BUILD -Wall -Ofast -mfpu=vfp -mfloat-abi=hard -march=armv6j -fgnu89-inline -I/opt/vc/include -I/opt/vc/include/interface/vcos/pthreads -I/opt/vc/include/interface/vmcs_host/linux -I/usr/include/SDL -D_GNU_SOURCE=1 -D_REENTRANT   -c -o warm.o ../arm/warm.c
gcc -DARM_ARCH -DRPI_BUILD -Wall -Ofast -mfpu=vfp -mfloat-abi=hard -march=armv6j -fgnu89-inline -I/opt/vc/include -I/opt/vc/include/interface/vcos/pthreads -I/opt/vc/include/interface/vmcs_host/linux -I/usr/include/SDL -D_GNU_SOURCE=1 -D_REENTRANT -Wno-unused-variable -Wno-unused-label   -c -o cpu_threaded.o ../cpu_threaded.c
gcc -DARM_ARCH -DRPI_BUILD -Wall -Ofast -mfpu=vfp -mfloat-abi=hard -march=armv6j -fgnu89-inline -I/opt/vc/include -I/opt/vc/include/interface/vcos/pthreads -I/opt/vc/include/interface/vmcs_host/linux -I/usr/include/SDL -D_GNU_SOURCE=1 -D_REENTRANT   -c -o gles_video.o gles_video.c
gcc -DARM_ARCH -DRPI_BUILD -Wall -Ofast -mfpu=vfp -mfloat-abi=hard -march=armv6j -fgnu89-inline -I/opt/vc/include -I/opt/vc/include/interface/vcos/pthreads -I/opt/vc/include/interface/vmcs_host/linux -I/usr/include/SDL -D_GNU_SOURCE=1 -D_REENTRANT -c -o video_blend.o ../arm/video_blend.S
gcc rpi.o main.o cpu.o memory.o video.o input.o sound.o gui.o cheats.o zip.o  arm_stub.o  warm.o cpu_threaded.o gles_video.o video_blend.o -ldl -lpthread -lz -L/opt/vc/lib/ -lGLESv2 -lEGL -lopenmaxil -lbcm_host -lvcos -lvchiq_arm  -lrt -L/usr/lib/arm-linux-gnueabihf -lSDL -o gpsp

Additional Steps:

1. The gba emulator needs to hava a gba bios file due to the lack of HLE Emulation. I can not provide you a link to this file as it is illegal to distribute it. Google "gba_bios.bin download" to find it, or rip it from your game boy. However, the file must then be placed in the same directory as the executable.

wget http://www.emuparadise.me/biosfiles/gba_bios.bin
scp gba_bios.bin pi@192.168.1.35:/home/pi/gpsp-ffa573f/raspberrypi

2. Same thing goes for roms. Google it! Roms can be placed anywhere.

Dins de la carpeta d'instal.lació creem el directori on ficarem les roms.

~/gpsp-ffa573f/raspberrypi
$ mkdir roms

$ cd /home/joan/MAME/ROMs/roms_GBA/
$ scp 1986_-_Pokemon_Emerald.gba pi@192.168.1.35:/home/pi/gpsp-ffa573f/raspberrypi/roms

3. To run gpSP, simply go to the directory it is in and enter:

Code: Select all
    ./gpsp
    ./gpsp roms/Space_Invaders.gba

to run it.

Les roms que funcionen són les de:

Default controlls are:

    KEYBOARD
    ---------
    Up      Up Arrow
    Down      Down Arrow
    Left      Left Arrow
    Right      Right Arrow
    A      Z
    B      X
    Start      Enter
    Select      Backspace
    L      A
    R      S

    Exit       Esc
    Menu      F10

    GAMEPAD
    -------
    Up      XAsix -
    Down      XAsix +
    Left      YAsix -
    Right      YAsix +
    A      Button 1
    B      Button 2
    Start      Button 3
    Select      Button 4
    L      Button 5
    R      Button 6

Per canviar els controls:

CD into the gpSP directory in your terminal and then just run ./gpsp It will launch a GUI that allows you to configure the controller.

A input.c trobem:

u32 key_map(SDLKey key_sym)
{
  switch(key_sym)
  {
    case SDLK_a:
      return BUTTON_L;

    case SDLK_s:
      return BUTTON_R;

    case SDLK_DOWN:
      return BUTTON_DOWN;

    case SDLK_UP:
      return BUTTON_UP;

    case SDLK_LEFT:
      return BUTTON_LEFT;

    case SDLK_RIGHT:
      return BUTTON_RIGHT;

    case SDLK_RETURN:
      return BUTTON_START;

    case SDLK_BACKSPACE:
      return BUTTON_SELECT;

    case SDLK_x:
      return BUTTON_B;

    case SDLK_z:
      return BUTTON_A;

    default:
      return BUTTON_NONE;
  }

Suposo que n'hi ha prou en canviar aquestes línies i recompilar. Realment jo no he trobat el menú per configurar els controls que sembla ser que existeix.

El tema és que sí que hi ha un fitxer de configuració, però és binari, i és millor configurar tots els controls des del menú gràfic:

...
It appears that gpsp is not run via libretro thus its not configured like the rest of RetroArch. My solution was to run gpsp from command line with no arguments (sudo ./~/RetroPie/emulators/gpsp/raspberrypi/gpsp ) and configure my buttons through the onscreen menu there. This generated a gpsp.cfg file (binary).

El problema està en què s'hauria de canviar les tecles per cada ROM, i això és molta feina. Per tant, és important trobar la manera de canviar les tecles per totes les ROMs, com s'explica en el següent apartat.

Canvi de tecles. Integració amb la minibartop de 7 botons

La tecla ESC permet sortir del menu, sortir del joc, i sortir del programa. En la minibartop la tecla ESC està associada al 0. El codi s'ha de canviar de la següent manera:

input.c

línia 645
      case SDL_KEYDOWN:
      {
        switch(event.key.keysym.sym)
        {
          case SDLK_ESCAPE:
            gui_action = CURSOR_EXIT;
            break;
          case SDLK_0:
            gui_action = CURSOR_EXIT;
            break;
...

línia 715
      case SDL_KEYDOWN:
      {
        if(event.key.keysym.sym == SDLK_ESCAPE)
        {
          quit();
        }
        if(event.key.keysym.sym == SDLK_0)
        {
          quit();
        }

línia 842
         case SDL_KEYDOWN:
            if ((event.key.keysym.sym == SDLK_ESCAPE) || (event.key.keysym.sym == SDLK_0)) {
               action = BUTTON_B;
            } else {
               action = key_map(event.key.keysym.sym);
            }
         break;

línia 919:
      case SDL_KEYDOWN:
      {
        if(event.key.keysym.sym == SDLK_ESCAPE)
        {
          quit();
        }
        if(event.key.keysym.sym == SDLK_0)
        {
          quit();
        }

Amb F10 es canvia la configuració de cada joc. Però per fer-ho per tots ells el fitxer que s'ha de modificar és el rpi.c.

Configuració original:

raspberry/rpi.c
//Default setting of keyboard
u32 keyboard_config_map[PLAT_KEY_COUNT] =
{
  SDLK_UP,          // Up
  SDLK_DOWN,        // Down
  SDLK_LEFT,        // Left
  SDLK_RIGHT,       // Right
  SDLK_z,           // Button A
  SDLK_x,           // Button B
  SDLK_a,           // Button L
  SDLK_s,           // Button R
  SDLK_RETURN,      // Button Select
  SDLK_BACKSPACE    // Button Start
};

Configuració modificada per a la minibartop de 7 tecles:

//Default setting of keyboard
u32 keyboard_config_map[PLAT_KEY_COUNT] =
{
  SDLK_UP,          // Up
  SDLK_DOWN,        // Down
  SDLK_LEFT,        // Left
  SDLK_RIGHT,       // Right
  SDLK_3,           // Button A
  SDLK_4,           // Button B
  SDLK_5,           // Button L
  SDLK_6,           // Button R
  SDLK_2,      // Button Select
  SDLK_1    // Button Start
};

I per tant quan hagi de fer modificacions en la configuració per defecte del teclat només hauré de fer:

gcc -DARM_ARCH -DRPI_BUILD -Wall -Ofast -mfpu=vfp -mfloat-abi=hard -march=armv6j -fgnu89-inline -I/opt/vc/include -I/opt/vc/include/interface/vcos/pthreads -I/opt/vc/include/interface/vmcs_host/linux -I/usr/include/SDL -D_GNU_SOURCE=1 -D_REENTRANT   -c -o rpi.o rpi.c

gcc -DARM_ARCH -DRPI_BUILD -Wall -Ofast -mfpu=vfp -mfloat-abi=hard -march=armv6j -fgnu89-inline -I/opt/vc/include -I/opt/vc/include/interface/vcos/pthreads -I/opt/vc/include/interface/vmcs_host/linux -I/usr/include/SDL -D_GNU_SOURCE=1 -D_REENTRANT   -c -o input.o ../input.c

gcc rpi.o main.o cpu.o memory.o video.o input.o sound.o gui.o cheats.o zip.o  arm_stub.o  warm.o cpu_threaded.o gles_video.o video_blend.o -ldl -lpthread -lz -L/opt/vc/lib/ -lGLESv2 -lEGL -lopenmaxil -lbcm_host -lvcos -lvchiq_arm  -lrt -L/usr/lib/arm-linux-gnueabihf -lSDL -o gpsp

Configuració

ROMs

Game Boy Advance (GBA):

Les millors ROMs

1. 		Pokemon - Emerald Version (UE).zip
2. 		Pokemon - Fire Red Version (U).zip
3. 		Pokemon - Leaf Green Version (E).zip
4. 		Super Mario Advance 4 - Super Mario Bros. 3 (U) (v1.0).zip
5. 		Pokemon - Ruby Version (U).zip
6. 		Pokemon - Sapphire Version (U).zip
7. 		Pocket Monsters - Emerald (J).zip
8. 		Yu-Gi-Oh! GX - Duel Academy (U).zip
9. 		Pocket Monsters - Fire Red (J).zip
10. 		Super Mario Advance 2 - Super Mario World (E) (M4).zip
11. 		Legend of Zelda, The - A Link to the Past & Four Swords (E) (M5).zip
12. 		Legend of Zelda, The - The Minish Cap (E) (M5).zip
13. 		2 Games in 1 - Dragon Ball Z - The Legacy of Goku I & II (U).zip
14. 		Kirby - Nightmare in Dream Land (E) (M5).zip
15. 		Crash Bandicoot - The Huge Adventure (U).zip
16. 		WarioWare - Twisted! (U).zip
17. 		Mario Kart - Super Circuit (E).zip
18. 		Naruto - Konoha Senki (J).zip
19. 		Grand Theft Auto Advance (E) (M5).zip
20. 		Digimon - Battle Spirit 2 (E) (M5).zip
21. 		Need for Speed - Most Wanted (UE) (M4).zip
22. 		Yu-Gi-Oh! Duel Monsters GX - Mezase Duel King (J).zip
23. 		Pokemon - Edicion Esmeralda (S).zip
24. 		Yu-Gi-Oh! - The Sacred Cards (E) (M5).zip
25. 		Harvest Moon - Friends of Mineral Town (U).zip
26. 		Pokemon - Version Rubis (F) (v1.1).zip
27. 		Dragon Ball Z - Supersonic Warriors (E) (M5).zip
28. 		Kingdom Hearts - Chain of Memories (J).zip
29. 		Mario & Luigi - Superstar Saga (E) (M5).zip
30. 		Metal Slug Advance (E).zip
31. 		Bleach Advance - Kurenai ni Somaru Soul Society (J).zip
32. 		One Piece Dragon Dream (J).zip
33. 		Mortal Kombat - Deadly Alliance (E) (M5).zip
34. 		Donkey Kong Country (E) (M5).zip
35. 		Pokemon - Version Rouge Feu (F).zip
36. 		Dragon Ball Z - Buu's Fury (U).zip
37. 		Kirby & the Amazing Mirror (E) (M5).zip
38. 		Sonic Advance 3 (U) (M6).zip
39. 		Yu-Gi-Oh! - Ultimate Masters Edition - World Championship Tournament 2006 (E) (M6).zip
40. 		Super Mario Advance 3 - Yoshi's Island (U).zip
41. 		Final Fantasy Tactics Advance (E) (M5).zip
42. 		Beyblade G-Revolution (U).zip
43. 		Pocket Monsters - Leaf Green (J).zip
44. 		Super Mario Advance 4 (J).zip
45. 		Kingdom Hearts - Chain of Memories (E) (M5).zip
46. 		Naruto - Ninja Council (U).zip
47. 		Dragon Ball Z - Supersonic Warriors (U).zip
49. 		Pokemon - Fire Red Version (E).zip
50. 		Classic NES Series - Super Mario Bros. (UE).zip
51. 		Classic NES Series - Legend of Zelda (UE).zip
52. 		Fire Emblem (UA).zip
53. 		Pokemon - Version Emeraude (F).zip
54. 		007 - Everything or Nothing (J).zip
55. 		Need for Speed Underground 2 (UE) (M4).zip
56. 		Yu-Gi-Oh! - The Eternal Duelist Soul (U) [b].zip
57. 		Golden Sun (UE).zip
58. 		2 Games in 1 - Spider-Man + Spider-Man 2 (E) (M3+M5).zip
59. 		Mario Kart Advance (J).zip
60. 		Megaman Zero (UE).zip
61. 		Medabots - Metabee Version (U).zip
62. 		Fire Emblem - The Sacred Stones (E) (M5).zip
63. 		Mario Party Advance (E) (M5).zip
64. 		Zelda no Densetsu - Fushigi no Boushi (J).zip
65. 		Metroid Fusion (E) (M5).zip
66. 		One Piece (U).zip
67. 		Wario Land 4 (UE).zip
68. 		Hoshi no Kirby - Kagami no Daimeikyuu (J) (v1.1).zip
69. 		Pokemon - Leaf Green Version (U).zip
70. 		Pokemon - Versione Smeraldo (I).zip
71. 		Megaman Battle Network 6 Cybeast Gregar (U).zip
72. 		FIFA 06 (UE) (M6).zip
73. 		Sims 2, The (UE) (M6).zip
74. 		Pocket Monsters - Fushigi no Dungeon Aka no Kyuujotai (J).zip
75. 		Advance Wars 2 - Black Hole Rising (E) (M5).zip
76. 		Pocket Monsters - Ruby (J).zip
77. 		Final Fantasy IV Advance (J).zip
78. 		Final Fantasy I & II - Dawn of Souls (E) (M5).zip
79. 		Dragon Quest Monsters - Caravan Heart (J).zip
80. 		Dragon Ball Z - The Legacy of Goku II (U).zip
81. 		Megaman Zero 4 (E).zip
82. 		Pokemon - Sapphire Version (E) (v1.1).zip
83. 		Mother 3 (J).zip
84. 		Crash Bandicoot Advance (J).zip
85. 		Final Fantasy IV Advance (E) (M5).zip
86. 		Mario Kart - Super Circuit (U).zip
87. 		Dragon Ball GT - Transformation (U).zip
88. 		Metroid - Zero Mission (E) (M5).zip
89. 		Pokemon - Versione Rosso Fuoco (I).zip
90. 		Pokemon - Edicion Rojo Fuego (S).zip
91. 		Yu-Gi-Oh! Worldwide Edition - Stairway to the Destined Duel (U) (M6).zip
92. 		Donkey Kong Country 3 (E) (M5).zip
93. 		Castlevania - Circle of the Moon (U).zip
94. 		Mario Tennis - Power Tour (UA) (M5).zip
95. 		Golden Sun - The Lost Age (UE).zip
96. 		Battle Network Rockman EXE 3 (J).zip
97. 		GameShark GBA (U) (v1.0) (Unl).zip
98. 		2 Games in 1 - Yu-Gi-Oh! - Reshef of Destruction + Yu-Gi-Oh! - The Sacred Cards (U).zip
99. 		Sims, The - Bustin' Out (UE) (M6).zip
100. 		Pokemon Pinball - Ruby & Sapphire (U).zip

Altres que poso:

Mario Pinball Land
Muppet Pinball MayhemMuppet Pinball Mayhem 1
Hardcore Pinball
Pac-Man Pinball Advance
Pinball Challenge Deluxe
Pinball Of The Dead, The
Pinball Tycoon
Sonic Pinball Party

Classic Nes Series - Bomberman
Classic NES Series - Castlevania
Classic Nes Series - Donkey Kong
Classic NES Series - Dr. Mario
Classic Nes Series - Excitebike
Classic Nes Series - Ice Climber
Classic NES Series - Metroid
Classic Nes Series - Pac-Man
Classic Nes Series - Xevious
Classic NES Series - Zelda II - The Adventure Of Link
Casper

Dead To Rights
Rugrats - Travesuras En El Castillo
Super Puzzle Fighter II Turbo
Chessmaster
Calciobit
Catwoman
Hikaru No Go 2
Klonoa 2 - Dream Champ Tournament
Wolfenstein 3d
Game Boy Wars Advance 1+2
Samurai Deeper Kyo
Backyard Football 2006
Dancing Sword - Senkou
Megaman Battle Network 2
Lego Island - Xtreme Stunts
Gunstar Super Heroes
Megaman Battle Network 6 Cybeast Falzar
Pink Panther - Pinkadelic Pursuit
Tennis Masters Series 2003
Mobile Suit Gundam Seed - Battle Assault
Hello Kitty - Happy Party Pals
Lunar Legend
Spyro 2 - Season Of Flame
Sword Of Mana
Lord Of The Rings, The - The Fellowship Of The Ring
Dora The Explorer - Dora's World Adventure!
Super Mario Advance
Metal Slug Advance
Sonic Advance

Els de Classic Nes Series no funcionen.

Molts dels jocs són textuals i els trobo avorrits. Es necessiten jocs amb acció. Per tant, s'ha de repassar aquests dos videos i extreure jocs interessants: The best 143 games (GBA):


Un cop tinc les roms executo convertir_roms_gba.sh. Les roms (format gba) es poden renombrar, o sigui que renombro manualment els caràcters especials que m'hagin quedat, etc.

Jocs

Finding Nemo

Cheats:

- Level 1 Password: IH5I
- Level 2 Password: 2G5I
- Level 3 Password: BGNI
- Level 4 Password: MHPI
- Level 5 Password: L2PI
- Level 6 Password: 4XPI
- Level 7 Password: 3N6J
- Level 8 Password: MP3K
- Level 9 Password: L67K
- Level 10 Password: 45ZK
- Level 11 Password: 3NGH
- Level 12 Password: 4PHC

creat per Joan Quintana Compte, febrer 2015

Obtingut de «http://wiki.joanillo.org/index.php?title=Emulador_Gameboy_Advance-GPSPy&oldid=254740»
